Webhooks Guide

This article covers everything you need to set up, secure, and consume Symbo webhooks. For signature validation specifics, see:

How webhooks work

1. You configure one or more endpoints in Symbo (an HTTPS URL we’ll send requests to).

2. For each endpoint, you subscribe to one or more events (e.g. call:completed).

3. When a subscribed event happens in Symbo, we fire an HTTP POST to your endpoint with a JSON body and a signed X-Hmac-Signature header.

4. Your server verifies the signature, processes the payload, and responds with a 2xx status to acknowledge receipt.

If your server returns a non-2xx status (or doesn’t respond), we’ll log the failure and retry.

Setting up an endpoint

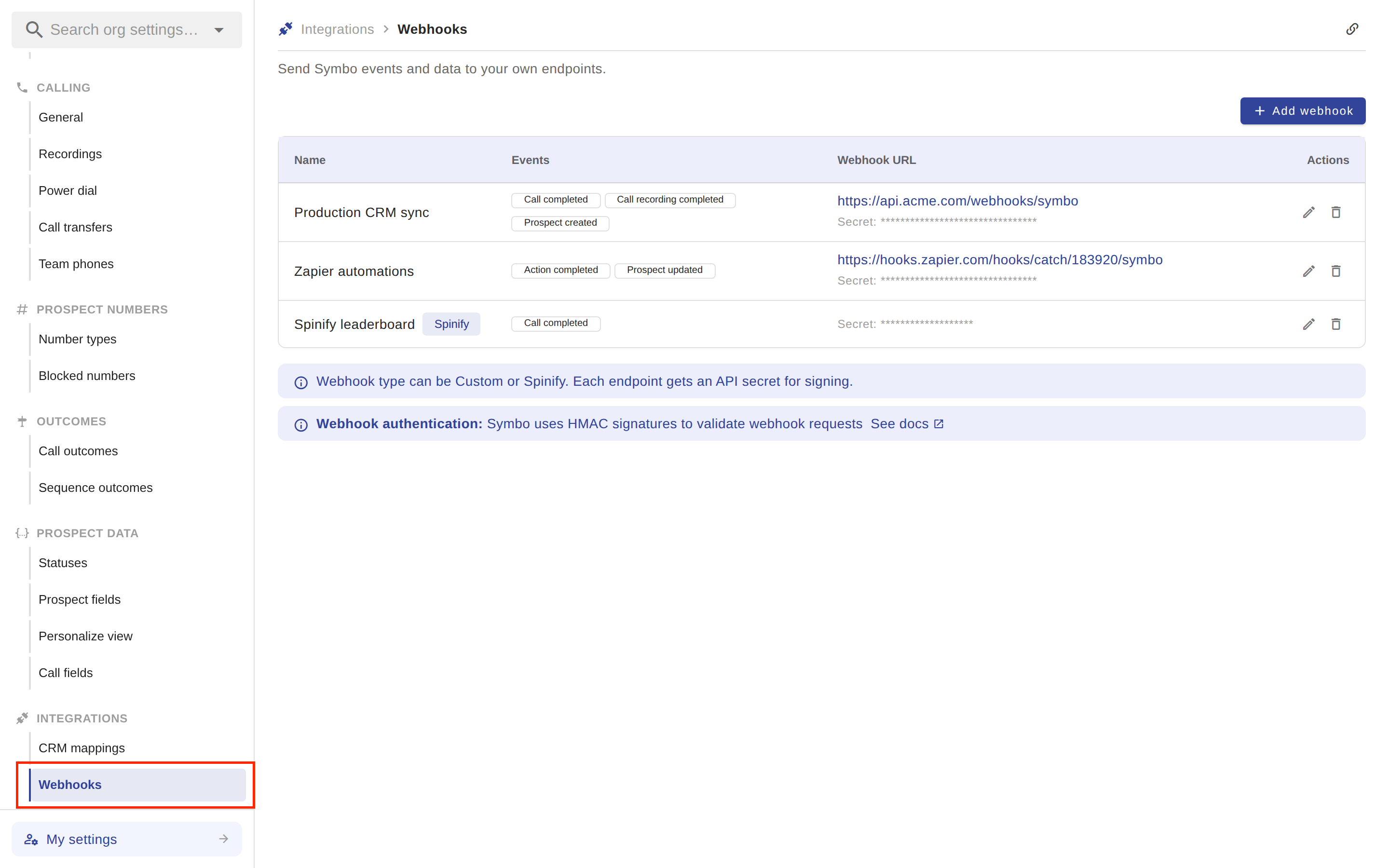

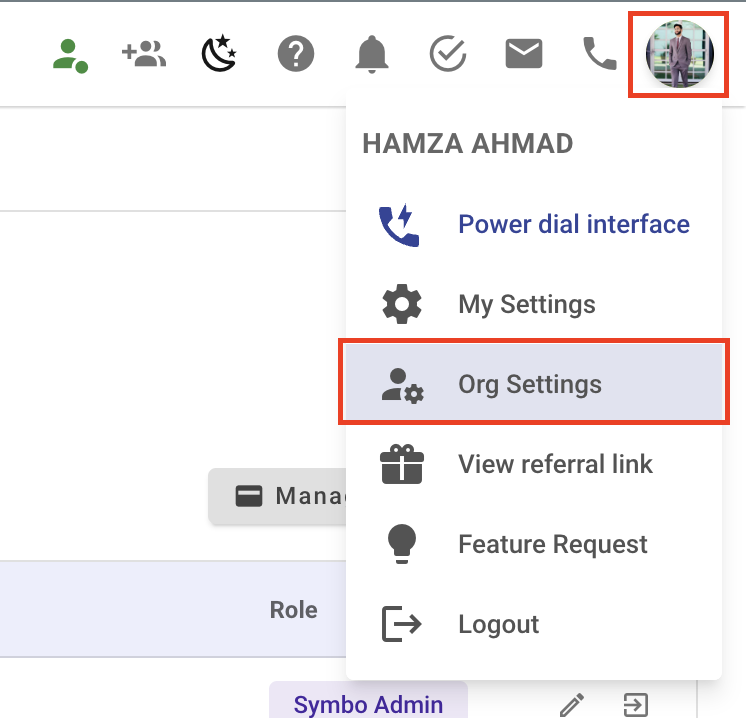

1. Head to Org Settings → Webhooks: https://app.symbo.ai/org-settings?type=webhooks

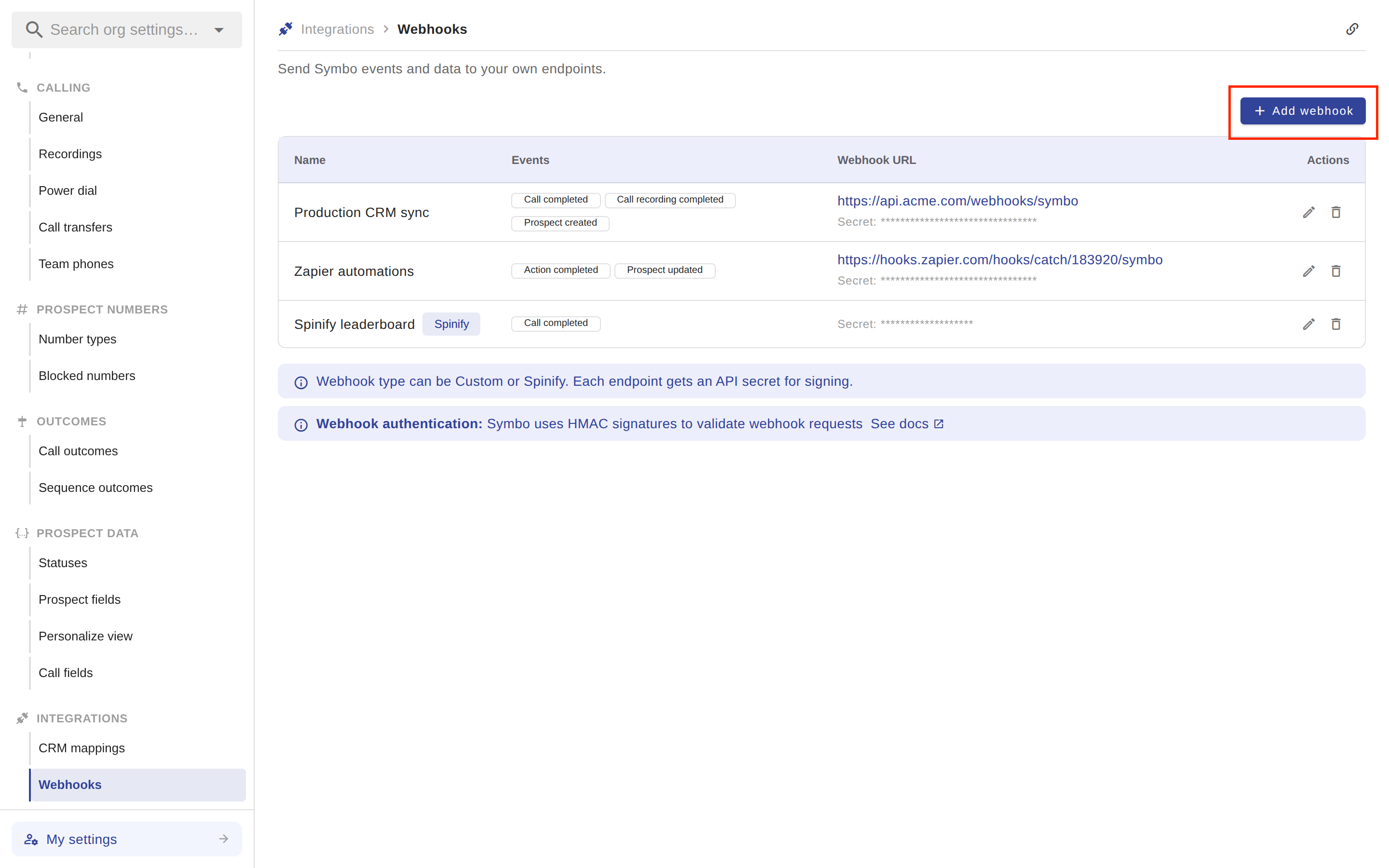

2. Click Add Endpoint.

3. Enter:

   • Name — a friendly label (e.g. “Production CRM sync”).

   • URL — must be https:// and publicly reachable.

   • Events — pick one or more from the list below.

4. Save. Symbo will generate a webhook secret for you. Copy it now — you’ll need it to validate incoming requests, and you won’t be able to see it in full again.

You can have multiple endpoints, each subscribing to different events. This is useful if you want to fan out call events to one service and prospect events to another.

Available events

Request format

All POST webhooks share the same envelope:

POST /your-webhook-path HTTP/1.1
Host: your-app.com
Content-Type: application/json
X-Hmac-Signature: 7c4b3e9f1a2d8c6b5f0e9d8a7b6c5d4e3f2a1b0c9d8e7f6a5b4c3d2e1f0a9b8c

{
  "id": "evt_01HXYZ...",
  "object": "Call",
  "description": "call:completed",
  "user_id": "usr_01HXYZ...",
  "created_at": "2026-05-04T15:30:00.000Z",
  "data": {
    /* event-specific payload */
  }
}

The envelope fields:

Validating the signature

Every POST webhook includes an X-Hmac-Signature header so you can verify the request came from Symbo and wasn’t tampered with.

The signature is computed as:

HMAC-SHA256(JSON.stringify(payload.data), your_webhook_secret)

Important: The signature is over the inner data object only, not the full envelope. This is the most common cause of validation failures.

Node.js example:

const crypto = require('crypto')

function verifySignature(req) {
  const provided = req.headers['x-hmac-signature']
  const expected = crypto
    .createHmac('sha256', process.env.SYMBO_WEBHOOK_SECRET)
    .update(JSON.stringify(req.body.data))
    .digest('hex')

  return crypto.timingSafeEqual(
    Buffer.from(provided, 'hex'),
    Buffer.from(expected, 'hex')
  )
}

Python example:

import hmac, hashlib, json, os

def verify_signature(request):
    provided = request.headers.get('X-Hmac-Signature')
    expected = hmac.new(
        key=os.environ['SYMBO_WEBHOOK_SECRET'].encode(),
        msg=json.dumps(request.json['data']).encode(),
        digestmod=hashlib.sha256,
    ).hexdigest()
    return hmac.compare_digest(provided, expected)

If signatures don’t match, log the rejection and return a 401. Most validation issues come down to:

• Hashing the full envelope instead of just data

• Re-serializing data with different key ordering or whitespace (use the parsed object directly, or be careful about how your framework formats JSON)

• Mixing up secret values between environments

Example payloads

call:completed

{
  "id": "evt_01HXYZ8L4N3P5Q6R7S8T9U0V1W",
  "object": "Call",
  "description": "call:completed",
  "user_id": "usr_01HXYZ7K3M2N4P5Q6R7S8T9U0V",
  "created_at": "2026-05-04T15:34:12.000Z",
  "data": {
    "id": "call_01HXYZABC123",
    "direction": "outbound",
    "from": "+15551234567",
    "to": "+15559876543",
    "state": "completed",
    "dialed_at": "2026-05-04T15:30:00.000Z",
    "answered_at": "2026-05-04T15:30:08.000Z",
    "completed_at": "2026-05-04T15:34:12.000Z",
    "duration_seconds": 244,
    "outcome": "connected",
    "call_disposition": "Meeting Booked",
    "call_disposition_group": "Positive",
    "recording_url": null,
    "transcription": null,
    "rep_overall_sentiment": "positive",
    "prospect_overall_sentiment": "positive",
    "total_talk_time_millis": 232000,
    "rep_talk_time_millis": 102000,
    "prospect_talk_time_millis": 130000,
    "is_logged_to_crm": true,
    "crm_activity_external_id": "0035g00000XYZ",
    "note": "Great convo, scheduled demo for Friday.",
    "prospect": { "id": "psp_01HXYZ...", "full_name": "Jane Doe", "title": "VP Sales" },
    "user": { "id": "usr_01HXYZ...", "first_name": "Sam", "last_name": "Rep" }
  }
}

call:recording-completed

{
  "id": "evt_01HXYZAN6Q5R7S8T9U0V1W2X3Y",
  "object": "Call",
  "description": "call:recording-completed",
  "user_id": "usr_01HXYZ...",
  "created_at": "2026-05-04T15:35:30.000Z",
  "data": {
    "id": "call_01HXYZABC123",
    "duration_seconds": 244,
    "recording_url": "https://recordings.symbo.ai/call_01HXYZABC123.mp3",
    "transcription": "Hi Jane, this is Sam from Iconic...",
    "transcription_completed_at": "2026-05-04T15:35:30.000Z",
    "transcription_url": "https://recordings.symbo.ai/call_01HXYZABC123.json",
    "transcription_json": [
      { "speaker": "rep", "start_ms": 0, "end_ms": 4200, "text": "Hi Jane, this is Sam from Iconic." },
      { "speaker": "prospect", "start_ms": 4500, "end_ms": 6800, "text": "Hi Sam, what's this about?" }
    ],
    "prospect": { "id": "psp_01HXYZ...", "full_name": "Jane Doe" }
  }
}

prospect:created

{
  "id": "evt_01HXYZBP7R6S8T9U0V1W2X3Y4Z",
  "object": "Prospect",
  "description": "prospect:created",
  "user_id": "usr_01HXYZ...",
  "created_at": "2026-05-04T14:00:00.000Z",
  "data": {
    "id": "psp_01HXYZ...",
    "first_name": "Jane",
    "last_name": "Doe",
    "full_name": "Jane Doe",
    "title": "VP Sales",
    "linkedin_url": "https://linkedin.com/in/janedoe",
    "website_url_1": "https://acme.com",
    "time_zone": "America/Los_Angeles",
    "prospect_status": "active",
    "auto_schedule": true,
    "tier": "Tier 1",
    "segment": "Enterprise"
  }
}

Custom prospect fields are flattened into data alongside the standard fields. The exact set depends on your org’s prospect schema.

action:completed

{
  "id": "evt_01HXYZDR9T8U0V1W2X3Y4Z5A6B",
  "object": "Action",
  "description": "action:completed",
  "user_id": "usr_01HXYZ...",
  "created_at": "2026-05-04T15:34:12.000Z",
  "data": {
    "id": "act_01HXYZ...",
    "action_type": "call",
    "state": "completed",
    "completed": true,
    "completed_at": "2026-05-04T15:34:12.000Z",
    "due_at": "2026-05-04T15:00:00.000Z",
    "scheduled_at": "2026-05-04T15:30:00.000Z",
    "subject": "Discovery call with Jane Doe",
    "body_html": "<p>Discuss Q3 expansion plans.</p>",
    "note": "Meeting booked for Friday.",
    "drive_step_id": "dst_01HXYZ...",
    "priority": 2,
    "is_pinned": false,
    "is_private": false
  }
}

Special case: call:contactlookup

Unlike every other webhook, call:contactlookup is a GET request — and it expects you to respond with contact data, which Symbo will then attach to the call.

It fires when a call dials a number that isn’t already linked to a prospect in Symbo, giving you a chance to look up the number in your own CRM and provide the matching contact on the fly.

Request we send:

GET /your-lookup-path?number=%2B15559876543 HTTP/1.1
Host: your-endpoint.com

There is no body and no X-Hmac-Signature on this request.

Response your server must return (status 200):

{
  "first_name": "Jane",
  "last_name": "Doe",
  "external_id": "crm-contact-12345",
  "work_phone": "+15559876543",
  "mobile_phone": "+15559876544",
  "home_phone": null,
  "other_phone": null,
  "work_email": "[email protected]",
  "personal_email": null,
  "account": {
    "external_id": "crm-account-678",
    "name": "Acme Corp"
  }
}

Required fields:

• first_name

• external_id

• If account is included: both account.external_id and account.name

If any required field is missing, or if your server returns a non-200 status, the response is silently dropped and no prospect is created.

Retries and delivery guarantees

• We consider a delivery successful if your endpoint returns any 2xx status.

• Any other status (or a network failure) increments the retry_count for the event.

• We deliver at least once — your code should be idempotent. Use the envelope id as a dedupe key.

• Webhook deliveries time out after a short window. Process the payload asynchronously and return 200 quickly; don’t do heavy work in the request handler.

Best practices

• Always validate the signature. Don’t trust the source IP or any other header.

• Use HTTPS. We will not deliver to plain http:// URLs.

• Respond fast. Aim for under 5 seconds. Push slow work to a queue.

• Be idempotent. Use the id field on the envelope to dedupe — the same event can arrive more than once.

• Log failures. Recording the body and computed-vs-provided signature on rejection makes debugging a lot easier.

• Use separate endpoints per environment. Don’t share a webhook secret between staging and production.

Troubleshooting

I’m not receiving any webhooks.

• Confirm the endpoint URL is publicly reachable over HTTPS.

• Confirm at least one event is selected on the endpoint.

• Trigger a matching action in Symbo (e.g. complete a call), then check the delivery history.

Signatures aren’t matching.

• You’re almost certainly hashing the wrong thing. Hash payload.data, not the full envelope.

• Make sure you’re using the secret from the correct endpoint.

• Avoid re-serializing the body if your framework changed key order or whitespace — hash the raw JSON-stringified data object as it was received.

My endpoint is being hammered with retries.

• Your server is probably returning a non-2xx status. Check the delivery history for the response code we’re seeing.

Still stuck? Message us or email [email protected] with an example event ID from the delivery history and we’ll dig in.
